- Home>> Product>>Interface converter series>>Eight port 485 hub
- - Product name：Eight port 485 hub

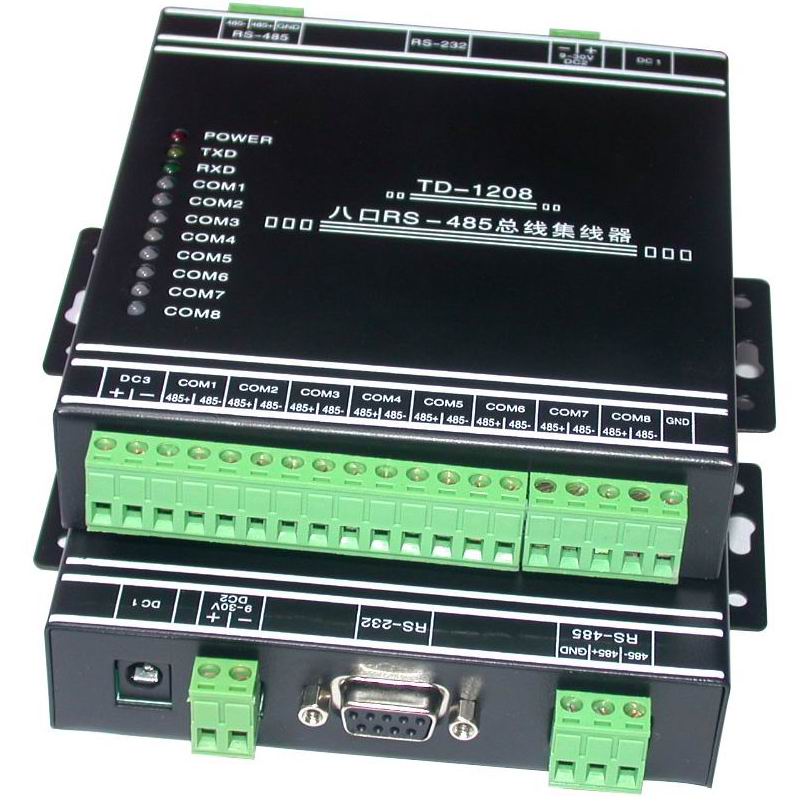

  - Model：TD-1208
  - Solutions and applications
  - Software and instructions
- - product overviewtechnical parameterstopological graphRelated applications
  - TD-1208 is a RS-485 hub (also known as RS-485 bus splitting concentrator, RS-485HUB). Shenzhen Tiandi Huajie Communication Co., Ltd. specializes in the design of satellite wiring for RS-485 bus system in complex electromagnetic environment. The RS485 hub uses bidirectional transparent transmission. The RS485 hub can divide one RS-485 or one RS-232 bus into eight RS-485 buses, or collect eight RS-485 signals into one RS-485 or one RS-232 bus. And each port is independent of light isolation, short circuit and open circuit protection. When the system fails, the built-in controller can cut off the faulty port in time. The RS485 hub ensures that each port works independently and achieves no interference. Each port can connect 32 contacts at the same time, which can extend the 1200 meter RS-485 signal. It is the best choice to change the single structure of RS-485 bus wiring.
  - Interface standard: compatible with EIA/TIA's RS-232C and RS-485 standards.
    Communication rate: 300 ~ 115200bps adaptive
    Communication distance: each communication port can extend your network to 1200m
    Data flow control: RS232 port of function multiplexing port (COM), without RTS/CTS hardware flow control, for automatic flow control.
    Interface features: 4 independent RS-485 signal outputs, and each interface is independent of each other.
    Connection equipment: multi machine communication 32, 64, 128 nodes
    Electrical interface: RS-232 (DB9 female), RS 485 (terminal)
    Transmission medium: over five kinds of twisted pair shielded lines or RS-485 private lines.
    Work mode: asynchronous work, point to point or multi point, 2 wire and half duplex
    Isolation: isolation voltage 3500V
    Transmission distance: RS-485 end 1200 meters, RS-232 end recommended not more than 5 meters.
    Size: 120*85*26 mm
    Use environment: temperature: -20 - 60 C, humidity: 5% - 95%
  - Industrial control automation, road traffic control automation, smart card, attendance, entrance guard, food selling system, industrial distribution system, closed-circuit monitoring, security system, POS system, building automation system, self-service banking system. Telecom communication system, bank, insurance system, remote decentralized equipment control, intelligent automatic alarm and fire protection linkage system, building automatic control system, large-scale retail system, network appliances and so on.
