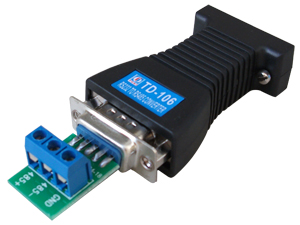

- - Product name： Passive 485 converter
  - Model：TD-106
  - Solutions and applications
  - Software and instructions
- - product overviewtechnical parameterstopological graphRelated applications
  - TD-106 is a passive RS-232 to RS-485 converter (also known as RS-485 bidirectional converter, code converter). Shenzhen Tiandi Huajie Technology Co., Ltd. is designed to solve the communication between RS-232 serial port equipment and RS-485 serial port equipment. The RS485 converter uses a unique power stealing technology (RS-232 terminal tripod power stealing), without external power supply, built-in flow control chip, with zero delay automatic conversion function. The RS485 converter can convert the single ended RS-232 signal to a balanced differential RS-485 signal. At the same time, it also has the characteristics of small volume, long transmission distance, high speed and stable performance.
  - Device interface: compatible with EIA/TIA's RS-232 and RS-485 standards.
    Transmission rate: 0 - 115.2 Kbps, asynchronous full duplex differential transmission.
    Transmission distance: 1200M (RS-485 end) 5M (RS-232 end)
    Working environment: 50 C to 70 C, relative humidity 5% to 95%
    Size: 66 X 33 X 17 mm
    Use environment: -25 C -70 C, relative humidity 5%-95%
    Quality assurance: three years.
  - Widely used in power systems, industrial automation control, access control/card system, is a cost-effective data interface conversion products
