- - Product name：Active 485 repeater
  - Model：TD-109
  - Solutions and applications
  - Software and instructions
- - product overviewtechnical parameterstopological graphRelated applications

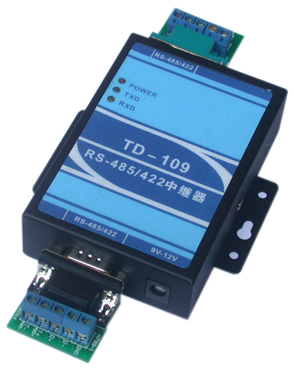

  - TD-109 is a RS-485/422 repeater (also known as RS-485/422 signal amplifier, RS-485/422 signal extender, 485 enhancer), is a professional design of Shenzhen Tiandi Huajie Communication Co., Ltd. to solve the problem of RS-485/422 signal weakness in transmission. The RS485 repeater is industrial-grade design, can extend the RS-485/422 signal 4000 feet (1200 meters) or add 32 connecting points, at the same time has a strong lightning protection and photoelectric isolation protection function, can provide effective protection for both ends of the RS-485/422 equipment. RS485 repeater supports automatic switching between RS-485 bus and RS-422 bus without manual allocation. It is the best choice to enhance RS-485/422 signal.
  - Interface characteristics: serial port conforms to EIARS-232/485/422 protocol.
    Electrical interface: interface (five bit terminals)
    Transmission medium: over five types of twisted pair shielded lines or 485 private lines.
    Transmission distance: each additional repeater can extend your 485 network by 1200m
    Communication speed: 300---115200bps
    Hanging points: 32 standard nodes
    Isolation voltage: 2500V continuous 7000V pulse
    Protection level: 600W surge protection, 15KV electrostatic protection
    Work mode: asynchronous work, point to point or multi point, 2 wire and half duplex, 4 line full duplex.
    Isolation: isolation voltage 3000V
    Transmission distance: RS-485/RS-422 1200 meters.
    Size: 95L*65W*25H (mm)
    Use environment: temperature: -20 - 60 C, humidity: 5% - 95%
  - Used for point-to-point, point-to-multipoint communication, industrial control automation, road traffic control automation, smart card, attendance, entrance guard, meal selling system, industrial distribution system, closed-circuit monitoring, security system, POS system, building automation system, self-service banking system. Telecom communication system, bank, insurance system, remote decentralized equipment control, intelligent automatic alarm and fire protection linkage system, building automatic control system, large-scale retail system, network appliances, etc.
