- - Product name：Active optical isolated 485 converter
  - Model：TD-108
  - Solutions and applications
  - Software and instructions
- - product overviewtechnical parameterstopological graphRelated applications

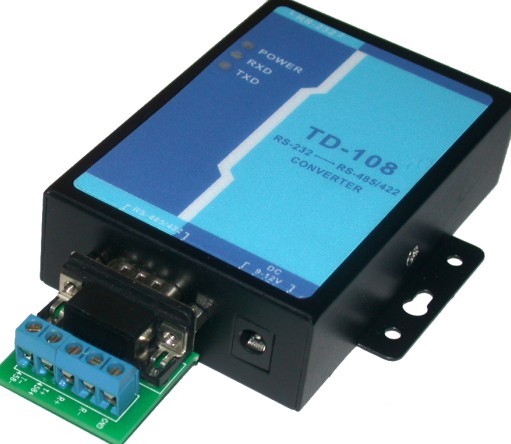

  - TD-108 is an active lightning-proof optical barrier RS-232 to RS-485/422 converter (also known as RS-485/422 photoelectric isolator, optical barrier serial port converter, RS485 converter), is Shenzhen Tiandi Huajie Communication Co., Ltd. in order to better solve and protect the data communication between RS-232 serial port equipment and RS-485/422 serial port equipment and professional design. . The RS485 converter can transparently convert single-ended RS-232 signals into balanced differential RS-485 or RS-422 signals, and has the function of automatic identification of RS-485/RS-422 signals without manual adjustment. RS485 converter uses two isolation methods at the same time: one is lightning protection and optical coupling isolation, the second is circuit isolation, Double Transistors below, played a very strong lightning protection and photoelectric isolation function. RS485 converter connection enables point-to-point, point to multipoint connections. When you point to multipoint connections, you can connect 128 RS-485/RS-422 devices. RS485 converter is the best choice for outdoor expansion system.
  - Interface characteristics: compatible with EIA/TIA's RS-232C/RS-485/RS-422 standard.
    Electrical interface: RS-232C interface (DB9 type), RS-485/422 interface (five bit terminal).
    Working mode: asynchronous half duplex or asynchronous full duplex.
    Transmission rate: 300 - 115200BPS
    Transmission distance: 0 - 5 km
    Transmission medium: RS-485/422 special shielded wire.
    Protection level: 600W surge protection, 15KV electrostatic protection, isolation voltage 3500V.
    Use environment: -10 C - 50 C, relative humidity 5%-95%.
    Size: 91mm*66mm*25mm.
    External power supply: voltage 9v-12v, current 100mA
  - Industrial control automation system, parking lot system, attendance, entrance guard, meal selling, one card system, closed circuit monitoring, security system, POS system, building automation system, self-service banking system, medical system.
